Product Overview

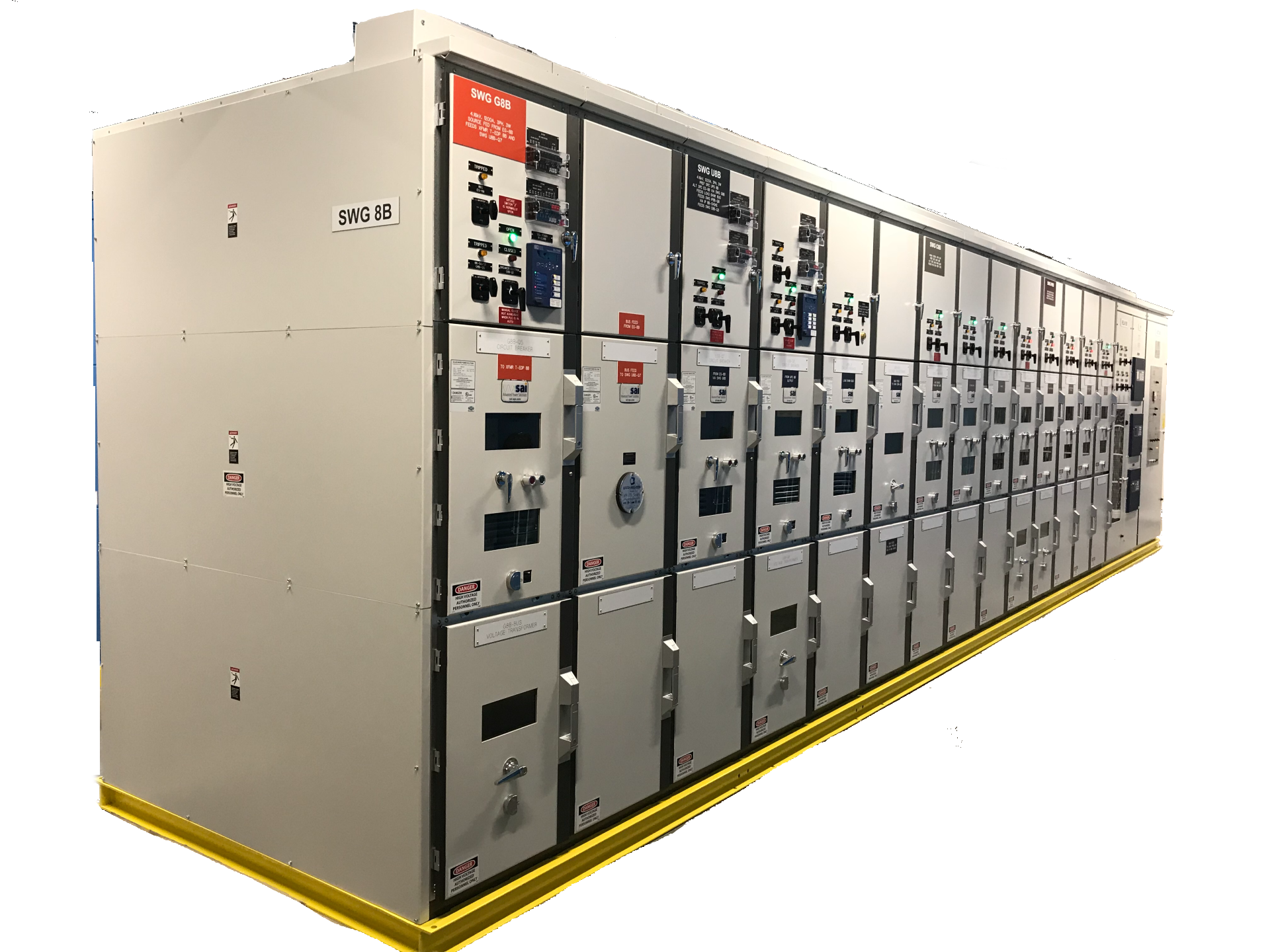

Built for high-risk, high-demand environments, SLIMVAC™ Metal Clad Switchgear delivers reliable medium voltage performance while reducing risk and supporting reliable operation.
Technical Specifications
- Voltage: 15kV
- Ampacity: 1200A – 2000A
- Short Circuit Rating: Up to 31.5kAIC
- Breakers: UL-listed draw-out vacuum circuit breakers
- Standards Compliance: UL certified to IEEE C37.20.2
- Dimensions:
- 1200A: 24” W × 78” D × 101” H
- 2000A: 30” W × 78” D × 101” H
- Arc Resistance: Type 2B, 0.5 second rating
- Enclosure: NEMA 1
- Mounting Option: Skid mounting available
- Custom colors at no extra charge
- Build America Buy America (BABA) Compliant
Benefits
☑ UL Approved
☑ Arc-Resistant Type 2B Construction
☑ Metal-Clad Compartmentalized Design
☑ Compact Arc-Resistant Footprint
Medium-voltage switchgear platform
Medium-voltage switchgear platform rated from 5kV–15kV, up to 2000A continuous current and 40kA short-circuit interrupting capability.
UL-listed draw-out vacuum circuit breakers
Equipped with UL-listed draw-out vacuum circuit breakers providing high dielectric strength, long mechanical life, and low maintenance requirements.
Metal-clad construction
Metal-clad construction with segregated breakers, bus, cable, and control compartments designed in accordance with IEEE C37.20.2 requirements.
Compact lineup geometry
Compact lineup geometry maximizes power distribution density while reducing switchgear room footprint and installation space requirements.
Withdrawable breaker design
Withdrawable breaker design supports testing, inspection, and maintenance without disturbing primary bus and cable terminations.
Indoor & Outdoor Enclosure Options
Available in NEMA 1 and NEMA 3R enclosures with optional skid-mounted configurations for industrial, utility, and critical infrastructure applications.
