Product Overview

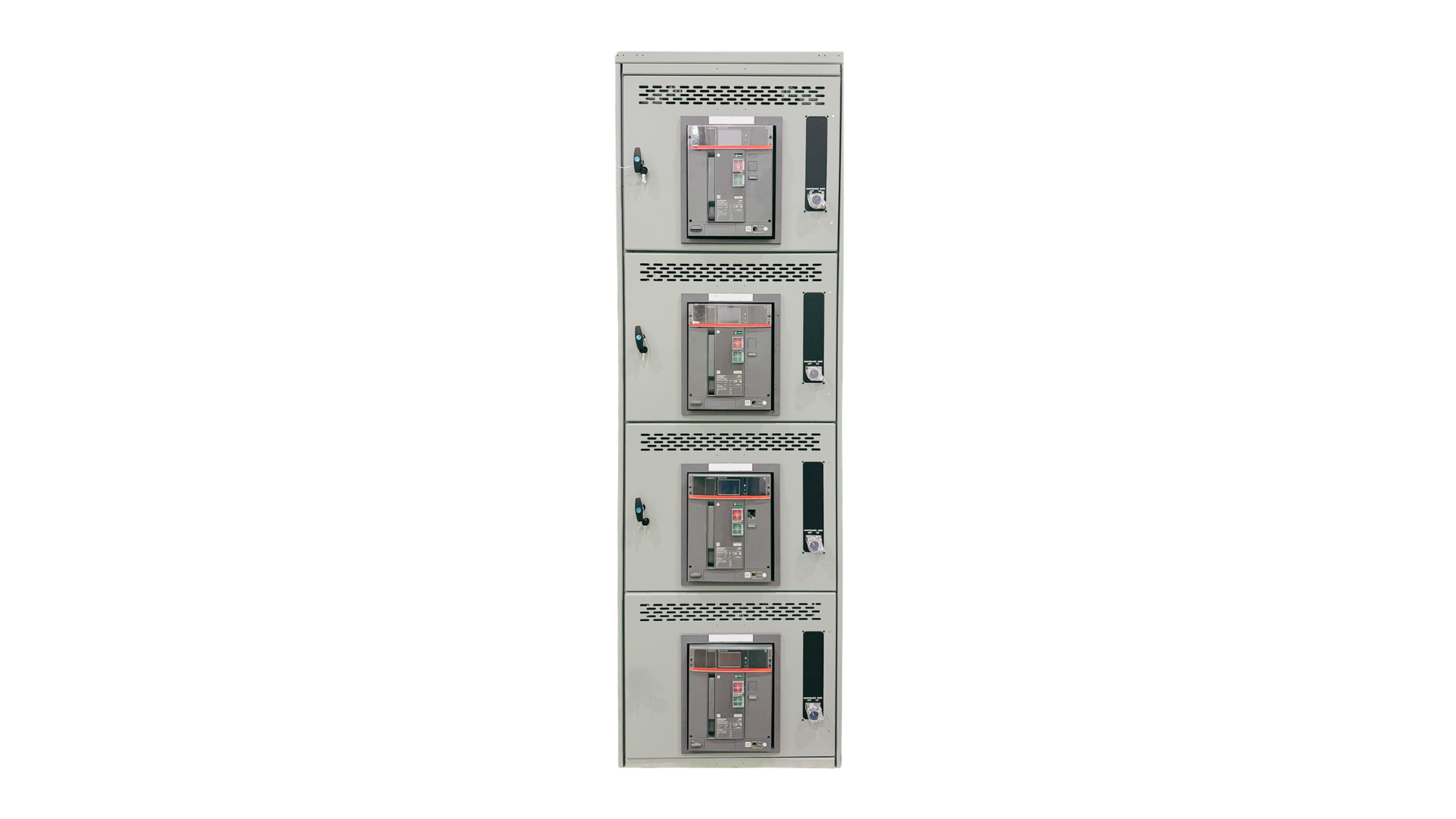

The 30" Wide 5000A Feeder Section is engineered to deliver reliable, high-capacity power distribution while maximizing space efficiency. Featuring four 1600A drawout breakers, this feeder section provides operational flexibility, simplified maintenance, and robust protection for demanding industrial and commercial applications.
Designed with front and rear access, configurable cable entry options, and a short-circuit rating of up to 65 kAIC, this solution ensures long-term performance, safety, and ease of service.
Technical Specifications
- Voltage: Up to 480V
- Section Bus Rating: 5000A
- Breakers: 4 × 1600A Drawout Breakers
- Short Circuit Rating: Up to 65 kAIC
- Access: Front and Rear
- Cable Entry: Top or Bottom
- Dimensions: 99" H × 30" W × 72" D
- System Configuration: 3 Phase, 3 Wire
Reliable High-Capacity Power Distribution
The 30" Wide 5000A Feeder Section is designed to deliver dependable power distribution for demanding industrial and commercial facilities. With a 5000A section bus and four 1600A drawout breakers, it provides the capacity needed to support critical loads while maintaining operational reliability.
Space-Saving Design
Despite its high current rating, this feeder section utilizes an efficient 30-inch-wide design to maximize valuable floor space.
Enhanced Serviceability and Maintenance
Featuring drawout breaker technology and front/rear accessibility, the feeder section is built for simplified maintenance and operational flexibility.
Flexible Installation Options
Designed to adapt to a variety of project requirements, the feeder section offers configurable cable entry and accessible compartment layouts.
Robust Short-Circuit Protection
With a short-circuit rating up to 65 kAIC, the feeder section provides dependable protection in demanding electrical environments.
