Product Overview

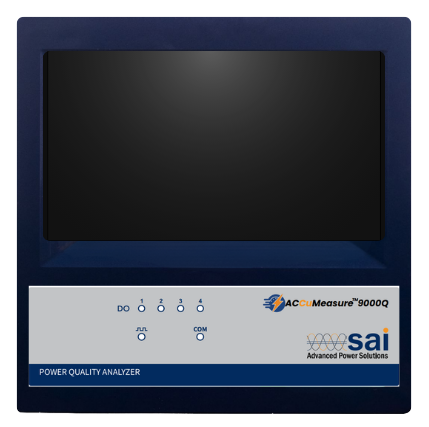

ACCuMeasure™9000Q — a next-generation Power Quality Meter engineered for top-notch accuracy and performance. Designed for professionals who demand precision, the ACCuMeasure 9000Q combines cutting-edge technology with intuitive operation, ensuring consistency, reliability and accuracy in each and every reading.
Technical Specifications
- Accuracy Class: Class S (IEC 61000-4-30), 0.2S (IEC 62053-22)
- Voltage Input: Up to 600V AC
- Current Input: 10mA – 6A
- Frequency Range: 45–65 Hz
- Sampling Rate: 1024 samples per cycle
- Display: 5-inch high-contrast TFT touchscreen (800 × 480)
- Data Storage: 4GB internal logging, USB port
- Communication: RS485 (Modbus), Ethernet (TCP/IP, SMTP, SNTP)
- Standards Compliance: IEC 61000-4-30 Class S, EN 50160, IEEE 519
- Operating Environment: -10°C to +55°C, 5–95% humidity
- Dimensions: 155 × 155 × 63 mm
- Weight: 600 g (unpacked)
Benefits
☑ Comprehensive Power Quality Analytics
☑ Integrated Communications Architecture
☑ Local Data Logging and Event Recording
☑ Industrial-Grade Reliability
Certified measurement platform
IEC 61000-4-30 Class S and IEC 62053-22 Class 0.2S certified measurement platform.
1024 samples-per-cycle
1024 samples-per-cycle acquisition rate for high-resolution waveform and disturbance analysis.
Power quality monitoring system or analyzer
Supports harmonic, interharmonic, transient, sag, swell, and power quality event monitoring.
Communications
Integrated Modbus RTU and Ethernet communications for SCADA and energy management systems.
Data Storage
4 GB onboard data logging with local event storage and USB retrieval capability.
Industrial-rated design compliant
Industrial-rated design compliant with EN 50160 and IEEE 519 power quality monitoring requirements.
